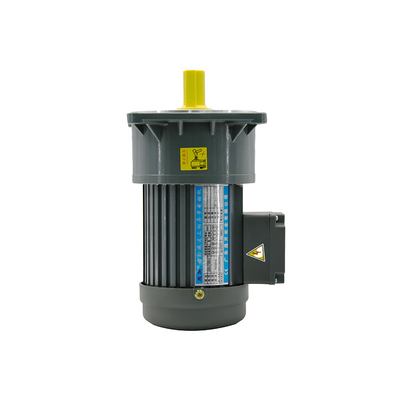

Type | Gear Motor |
Power | 100W,200W,400W,750W,1500W,2200W,3700W |
Voltage | Single Phase 110V/220V |
Three Phase 220V/380V | |
Gear ratio | 3, 3.6, 5, 6, 7.5, 9, 12.5 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 150, 180,200 |
Shaft Type | Parallel shaft |
Using humidity | ≤85%(Place without dew) |
Using temperature | -10℃~+40℃(No freeze) |
Insulation class | Class B (130℃) |
Temperature rise | The temperature rise should be lower than 80℃ measured |
by resistance method when the motor is working. | |
Insulation voltage | In the circumstance of normal temperature and humidity, |
there will be no problem supplying the power of 1500V 50/60Hz between the metal wiring and motor shell in 1 minute while the motor is working. | |
Insulation resistance | In the circumastance of normal temperature and humidity, |
the resistance can be up to 100MΩ,measured by DC 500V | |
insulation resistance measurer between the motor wiring | |
and motor shell while the motor is working | |
Bearing Type | Ball Bearing(Mark KB for Type GU square case) |
Gear type(Gearbox) | GU:General Helical Gear; GN:Reinforced Helical Gear |
Shape of Motor Shaft | A:Flat type; A1:Milling Keyway; GU:General Helical Gear; |
GN:Reinforced Helical Gear | |
Keywords | Electric Asynchronous AC Motor |
