Industrial Robots China Factory Screw Jacks Reducer Gearbox Planetary Gear Reducer

1.0 Sets
MOQ
Industrial Robots China Factory Screw Jacks Reducer Gearbox Planetary Gear Reducer
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Industrial robots, production automation
Weight (KG): 7 KG
Gearing Arrangement: Planetary
Output Torque: 40-60Nm
Input Speed: 5000-10000RPM
Output Speed: 1-10000RPM
Product name: China factory screw jacks reducer gearbox planetary gear reducer
Ratio: 3-10, 15-100
Micro Backlash PO: ≤1
Micro Backlash P1: ≤3
Micro Backlash P2: ≤5
Mounting Position: All directions
Application: Industrial robots, production automation
Основная информация
Оплата и доставка Условия
Packaging Details: Plastic bag, foam and carton for each set of planetary reducer. Or as requested.
Supply Ability: 1000 Set/Sets per Month
Характер продукции

China factory screw jacks reducer gearbox planetary gear reducer

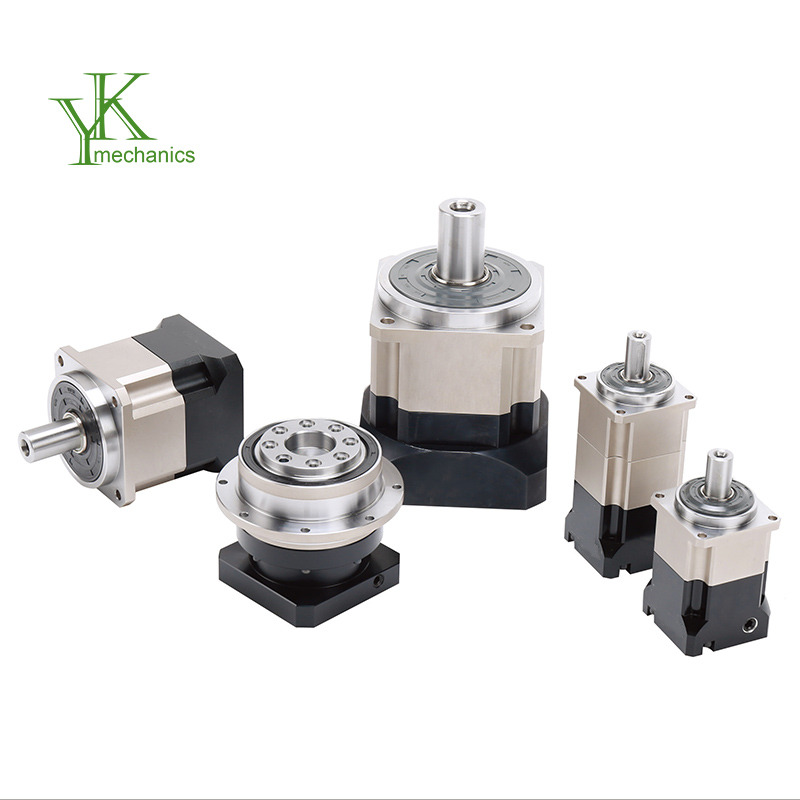

YK precision planetary gearbox reducer characteristics:

Low noise: <65db

Low backlash: Min 3arcs for Single stage, Min 5 arcs for Double stage.

High torque: Higher torque compared to same level standard planetary gearbox reducer.

High stability: High-strength alloy steel as material, hardening treatment for the whole gear parts but not only surface hardening.

High reduction ratio: Modular design to ensure the high precision connection.




Technical Parameters of TF100

Stage Unit One Stage Two Stage
Ratio i 3, 4, 5, 6, 7, 8, 9, 10 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100
Nominal Output Torque T 2N Nm 208, 290, 330, 310, 300, 260, 230, 230 208, 290, 330, 310, 300, 260, 230, 330, 310, 300, 260, 230, 230
Emergency Stop Torque T 2NOT1 Nm 3 Times of Nominal Output Torque 3 Times of Nominal Output Torque
Nominal Input Speed n 1N rpm 4000 4000
Max Input Speed n 1B rpm 8000 8000
Micro Backlash P0 arcmin ≤1 ≤1
Micro Backlash P1 arcmin ≤3 ≤5
Micro Backlash P2 arcmin ≤5 ≤7
Torsional Rigidity Nm/arcmin 25 25
Max Radial Load F 2rB2 N 3350 1530
Max Axial Load F 2aB2 N 765 3350
Service Life 3 hr 20000(Continuously 10000) 20000(Continuously 10000)
Efficiency η % ≥97% ≥94%
Weight kg 7.8 9.0
Operating Temp °C -10°C ~ +90°C -10°C ~ +90°C
Lubrication   Synthetic Lubrication Oils Synthetic Lubrication Oils
Mounting Position   All direcstions All direcstions
Noise (n=3000rpm, i=10, No load) dB(A) ≤63 ≤63
Mass Moments of Inertia J1 kg.cm2 3.25, 2.74, 2.71, 2.65, 2.62, 2.58, 2.57, 2.57 0.47, 0.47, 0.47, 0.47, 0.47, 0.47, 0.44, 0.44, 0.44, 0.44, 0.44, 0.44

  Notes: 1. Max acceleration torque T=60% of T2NOT.

              2. Applied to the output shaft center at 100rpm.

              3. For continuous operation, the service life time is no less than 10,000hrs.



Company Information and Our Service
Packing and Shipping


FAQ

Q: How long is your delivery time?

A: Generally it is 10 days if the goods are in stock. or it is around 30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample but not free, and do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
