Характеристики

Warranty: 1 year

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Food & Bevera

Weight (KG): 2.5 KG

Customized support: OEM, ODM

Gearing Arrangement: Cycloidal

Output Torque: 50~6000Nm, 19-91.3N.M

Input Speed: 300-1800Rpm, 3000 RPM

Output Speed: 5--65 r/min, 37-1000 RPM

Сертификация: ISO9001

Product Name: Planetary Gear Speed Reducer Reduction Gearbox

Application: Robotic

Ratio: 3:1-81:1

Keywords: Motor Planetary Reducer

Основная информация

Сертификация: ISO9001

Оплата и доставка Условия

Packaging Details: Conservation:anti rust oiler inside and outside surface,plastic caps in both ends. Package:bundle with steel strip and knitting strip,or wooden case.

Supply Ability: 3000 Ton/Tons per Month

Характер продукции

Details Images

1. Use Ansys Technology To Perform Finite Element Analysis On The Strength Of The Gears, And At The Same Time, Trim The Tooth Profile And Lead Of The Helical Tooth Surface To Reduce The Impact And Noise During Gear Meshing And Increase The Service Life Of The Gear Train. Life; 2. The Gear Material Is Made Of High-quality Low-carbon Alloy Steel. After Carburizing And Quenching, It Reaches About Hrc60. It Is Processed By High-precision Machine Tools To Ensure That The Accuracy Of The Gear Is Below Iso 5, So As To Obtain The Best Quality. Abrasion And Impact Resistance; 3. The Ring Gear And The Output Flange Are Designed In An Integrated Manner, Using High-quality Steel And Formed By Hot Forging, So As To Obtain A High Material Density. The Integrated Design Can Ensure That All Geometric Dimensions Can Be Formed At One Time, And Other Compared With The Built-in And Clip-on Structures, It Has Higher Precision And Strength; 4. The Planetary Wheel Bearing Adopts Full Needle Roller Bearing Without Cage, Which Increases The Output Torque And Rigidity Of The Reducer; 5. The Cage-type Planet Carrier And The Output Shaft Are Integrated, And The Bearings At Both Ends Are Supported To Ensure Higher Strength And Precision; 6. The Input Shaft And The Motor Are Clamped By Split Type, After Dynamic Balance Test, To Ensure The Coaxiality And Zero Backlash Power Transmission At High Input Speed; 7. Use Fully Synthetic Grease And Seal Design According To Ip65 Protection Grade To Ensure That The Lubricating Oil Does Not Leak And Is Maintenance-free.

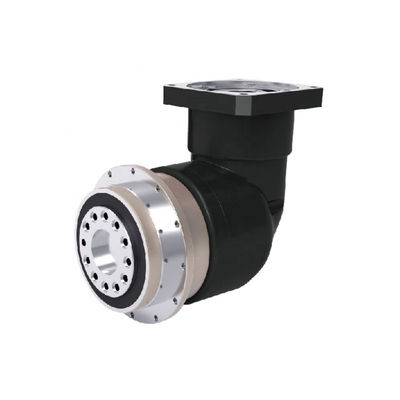

High Torque Shimpo Type Helical Gear Servo Planetary Gear Speed Reducer Reduction Gearbox
Stage	One Stage	Two Stage
Reduction Ratio	3,4,5,8,10	16,20,25,28,32,40,50
Length	A 80	A 89
Rated Input Speed	3000	3000
Maximum Input Speed	4500	4500
Maximum Radial Force	280	320
Maximum Axial Force	200	240
No-load Torque	0.2	0.2
Full Load Efficiency	90	88
Return Clearance	≤7	≤10
Noise	≤62	≤62
Weight	0.7	1
Average Lifespan	20000
Torsional Rigidity	1.3
Lubrication Method	long-term
Turn Around	Input/Output Syntropy
Protection Level	IP65
Installation Method	Arbitrairily

Professional Machine Display

Our Services

East Ai has a powerful team which has inddependent design development of pneumatic components from product design to peoduction operations

In case the product does not meet your expectations, we offering a sampling service ,giving you the opportunity to properly evaluate products before you buy.

In order to meet higher requirements from customers around the world ,we import premiere machines from developed countries

East AI has esrablished strict quality management system , from selection of

raw material to components testing

If you want your products to get certified (CE/BV/ISO/RoHS/SGS etc). please feel free to contact us for detailed discussion.

Packing is one part of our job. we provide state of the art packing .to deliver your goods safely and securely.

Packing & Shipping

Packing Details :Inner brown craft paper/outside carton/wooden pallets.
Delivery Details : 20-25 days after received the payment.

FAQ

Q1: Are You Manufacture or Trade Company?

A1: We are manufacture,we have 10 years experience for supply Metal material and products in domestic.

Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production;Always final Inspection before shipment;

Q3: What is your terms of payment ?
A3:

1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation

Q4: Can you provide Certificates for aluminum materials ?
A4:Yes,we can supply MTC-Material Test Certificate.

Q5: Can you provide sample?
A5: Yes, we can provide you sample, but you need to pay for the sample and freight firstly. We will return the sample fee after you make an order.
