Характеристики

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Construction worksÂ , Energy & Mining, hollow shaft Parallel Axis speed reducer gearbox

Gearing Arrangement: Helical

Output Torque: 200-18000Nm

Input Speed: 750-1500rpm

Output Speed: 0.06-374rpm

Pole: three stage 4 stage 6 stage

Ratio: 80

Housing Material: Cast Iron

Material: 20CrMnTi

Working temperature: -40~45â„ƒ

Type: hollow shaft Parallel Axis wps speed reducer gearbox for excavator

Process: Carburizing, Nitriding , Grinding

Efficiency: 92%~96%

Mounting Position: Horizontal,Vertical,Flange

Color: Blue,Green,Gray,Red

Основная информация

Оплата и доставка Условия

Packaging Details: sea worthy wooden case for F Series hollow shaft Parallel Axis wps speed reducer gearbox for excavator

Характер продукции

Product Description

PROFESSIONAL MANUFACTURE

—— SINCE 1995

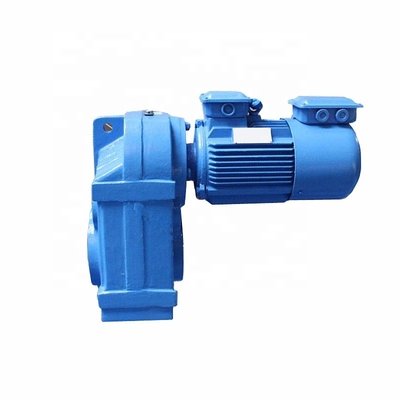

F series Parallel Shaft Gearbox Speed Reducer

Hard Tooth Sureface Helical Gear

F Series hollow shaft Parallel Axis wps speed reducer gearbox for excavator

Chinese speed gear reducer —— Designed on the basis of modular combined system,the gear reducer have abundant combinations of motor,mounting position and structure projects, the classifying class of transmission ratio is detailed, which is suitable for different working situation and realize mechatronics.

Chinese electric motor speed reducer is widely used in mining machinery, chemical industry,steel metallurgy, light industry,environmental protection, paper making, printing, lifting transport, food industry and so on.

Main Series Product: R series helical gear motor, K series spiral bevel gear reducer, NGW, P series planetary reducer, H B series helical gear box, Z (ZDY, ZLY, ZSY, and ZFY) serial hard tooth surface cylindrical helical gear reducer, D (DBY and DCY) serial hard tooth surface cone gear reducer, cycloid reducer, etc. Meanwhile, map sample processing business can be undertaken.

Feature:

It realized serialization and modularization with compact structure and wide range of transmission ratio. The transmission efficiency reach up to 96%.
The gear processed by Carburizing, Nitriding & Grinding.
High efficiency, superior performance with less energy consumption
High precision gear, steady transmission, low noise, large load capacity, long service life.
Has various of installation method.

Specification

F Series hollow shaft Parallel Axis wps speed reducer gearbox for excavator:

F Series Specification
Size	37	47	57	67	77	87	97	107	127	157
Structure	F FA FF FAF FAZ
Input power rating(kw)	0.18-3.0	0.18-3.0	0.18-5.5	0.18-5.5	0.37-11	0.75-22	1.1-30	2.2-45	7.5-90	11-200
Ratio	3.81-128.51	5.06-189.39	5.18-199.70	4.21-228.99	4.30-281.71	4.12-270.68	4.68-280.76	6.20-254.40	4.63-172.17	11.92-267.43
Permissible torque N.m	200	400	600	820	1500	3000	4300	7840	12000	18000

Model selection for Helical Gear Box Transmission:

Closely using the ideal reduction ratio.

Reduction ratio = servo motor speed / reducer output shaft speed

Torque calculation: Torque calculation is very important for the life of reducer, and pay attention to whether the maximum torque value (TP) of acceleration exceeds the maximum load torque of the reducer.

The applicable power is usually the applicable power of the servo models on the market, the applicability of the reducer is very high, the working coefficient can be maintained above 1.2, but the choice can also be based on their own needs to decide.F Series hollow shaft Parallel Axis wps speed reducer gearbox for excavator.

Technology

Chinese Reducer Helical Gear Box Transmission is a mechanical transmission in many fields of the national economy. The product categories covered by the industry include all kinds of gear reducer, planetary gear reducer and worm reducer, as well as various special transmission devices such as speed increasing device, speed control Devices, including various types of flexible transmission devices, such as compound transmission. Products and services in the field of metallurgy, nonferrous metals, coal, building materials, ships, water conservancy, electricity, construction machinery and petrochemical industries.

In all fields of national economy and national defense industry, gearbox products have a wide range of applications. Food light industry, electric machinery, construction machinery, metallurgy machinery, cement machinery, environmental protection machinery, electronic appliances, road construction machinery, water conservancy machinery, chemical machinery, mining machinery, conveyor machinery, building materials machinery, rubber machinery, petroleum machinery and other industries have strong demand of Reducer products.F Series hollow shaft Parallel Axis wps speed reducer gearbox for excavator.
