Характеристики

Warranty: 1 year

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining, Construction works

Customized support: OEM, ODM, OBM

Gearing Arrangement: Helical

Output Torque: up to 470000 N.m, up to 470000 N.m

Input Speed: 750-1500rpm

Output Speed: 1.7-1200rpm, 1.7-1200rpm

Certificate: CE,ISO9001:2008,ISO14001:2004

No. of stage: 1,2,3,4

Output shaft design: solid shaft, hollow shaft

Rated Power: 2.52-5366kw

Input Speed:: 750-1500rpm

Основная информация

Сертификация: CE,ISO9001:2008,ISO14001:2004

Оплата и доставка Условия

Packaging Details: Plywood

Supply Ability: 100 Set/Sets per Day

Характер продукции

Products Description

HB standard industrial gearbox 1. Adopting the structure of the sound absorption box, the large surface area of the box body and the large fan, cylindrical gear and spiral gear adopt advanced gear grinding technology, so that the temperature rise, noise reduction, and operation reliability of the whole machine are improved. The power increases.

2. The H and B series industrial gearboxes adopt a general design scheme to realize a universal box for parallel shafts and right-angle shafts. The types of parts are reduced and the specifications and models are increased. 3. H and B standard industrial gearboxes have 3~26 specifications. There are 1-4 stages of deceleration transmission, and the speed ratio is 1.25-450. 4. Installation method: base installation, hollow shaft installation, swing base installation, torque arm installation. 5. Input mode: motor connection flange, shaft input. 6. Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft connected by expansion plate, hollow shaft connected by spline, solid shaft connected by spline and solid shaft connected by flange. 7. Backstop can be equipped according to customer requirements. Combine with R and K series to get larger speed ratio. Technical Parameters: Speed ratio range: H series 1.25-450, B series 5-400 Torque range: H series 2-900 kNm. B series 5.8-900 kNm Power range: H series 4-5000 kW, B series 2.8-3000kW

Overview of H and B series industrial gearboxes 1) H and B gearboxes adopt general design schemes, which can be transformed into industry-specific gearboxes according to customer needs. 2) Achieve parallel shaft, right-angle shaft, vertical, Chen Bu-type general box, reduce the types of parts and increase the specifications and models. 3) Adopting the structure of the sound-absorbing box, the large surface area of the box and the large fan, the cylindrical gear and the spiral cone-i wheel all adopt advanced gear grinding technology, so that the temperature rise of the whole machine, the reduction of noise, and the reliability of operation are improved. , The transmission power increases. 4) Input mode: motor connection flange, shaft input. 5) Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft connected by expansion plate, hollow shaft connected by spline, solid shaft connected by spline and solid shaft connected by flange. 6) Installation method: horizontal, vertical, swing base, torsion arm type. 7) 11, B series production. nIII has 1^-26 type specifications, reduction transmission stages are 1-4, speed ratio 1.25 -450, and CR, K, 5 series combination to get a larger speed ratio

Ratio	25-4000
Output speed	1.7-1200r/mkin
Output Torque	Up to 470000Nm
Motor power	2.52-5366KW
Mounted Form	HORIZONTAL MOUNTING、 VERTICAL MOUNTING、AXIS MOUTING, SHRINK DISK MOUTING

For more models or customization, please click here！

Click on the picture below for details

Building Material Shops K Series Helical-Bevel Geared Motor Gearbox Helical Speed Reducers With Flange Hollow Shaft

Factory S87 Series Worm Shaft Reverse Gearbox Transmission Hollow Reducer Reducer DC Stepper Motor

Hotels F Series Gear Bevel Helical Motors With Parallel Shaft Gearbox Gear Units Helical Reducer

Power Tranmission TA40 TA45 TA50 Shaft Mounted Reducer Gearboxs with torque arm planetary gearbox nema17 motor

Alloy Steel And Cast Iron High Power Shaft Gear Reducer Model B3SH07D Liquid Gearbox Vertical Drive 5 Ratio

Building Material Shops BAFFERO F Series-Parallel Hollow Shaft Geared Motor Speed Reducer Gearbox

Alloy Steel And Cast Iron High Power Shaft Gear Reducer Model B3SH07D Liquid Gearbox Vertical Drive 5 Ratio

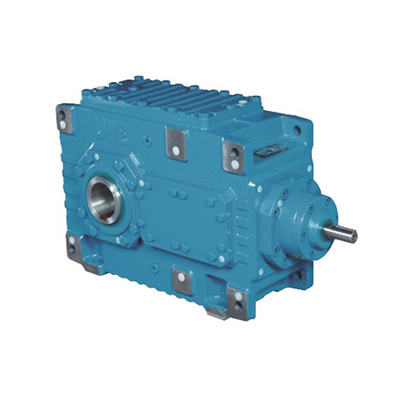

Factory manufacturers supply HB Series Big Tooth Parallel Shaft Reducer Hard Surface Lifting Equipment Gearbox
