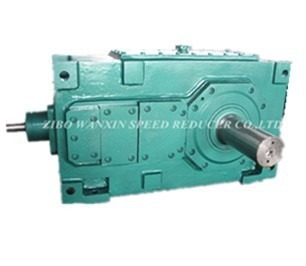

Alloy Steel And Cast Iron High Power Shaft Gear Reducer Model B3SH07D Liquid Gearbox Vertical Drive 5 Ratio

B series bevel helical gearbox

♦ HB series gear units adopt currency layout and may transform into special reducer according to customer's requirement.

♦. The housing of one size can realize parallel shaftmodes and horizontal mounting modes.Variety of components is reducible, the number of reducer's mode is augmentable.

♦. Sound-absorbable structure, lager surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficeintly.

♦Input mode : motor connected flange ,shaft input.

♦ Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk, hollow or solid shaft with involute splines , solid shaft with flange.

♦Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, torque-arm-mounted.

♦HB series include sizes 3-26, number of stages is 1-4,ratio is 1.25-450. Combining with WR,S and K series, ratio will be higher.

Helical bevel Gearbox performance

1.Gear units are highly efficient and based on a modular design system which allows a reduced number of parts and housing.Interchangeability of components and compatibility within the product range.

2.The gradual speeds are propitious to the best dimension selection.

3.The noise evidently reduced by the grinding of bevel gears and designing by means of masak computer program.

4.Predominantly non-contacting wear-resistant labyrinth seals are possible.

5.Favorable thermal conduction by large fans incorporation a new type of air conduction fan with use of cowl.

Operation and Precautions:

Installation and use of gear box will be made according to the directions.Overload operation, to shorten the service life of the gearbox.Gear box in sliding, don't hang upside, adjustable nut to adjust machine and adjust the firmness, return to normal use.Don't push too hard and abnormal operation, causing damage of gearbox.

Care and Maintenance

1.Maintenance work must be carried out by trained professionals.

2.Disconnect the gearbox and all attachments

3.oil renewing.

4.Clean the vent valve.

5. Add grease to combined seal.

6.Clean up the fan and the surface of the gearbox.

7.Check the cooling coil.

8.The maintenance after the completion of "checking before starting the work".

Bevel Gearbox,Helical Gearbox and Planetary Gearbox belongs to together and formed the industrial gearbox,Bevel Gearbox process design in transmission products belong to follow the pace of era of science and technology high-tech products,box using alloy steel carburizing and quenching.Perfect the overall design and high quality material makes the gearbox products follow the trend of The Times, leading the drive the development of industry.

Product usage:

Our gearbox are widely used in metallurgy, mining, lifting, transporation, construction, chemical, building, light industry, food, conveying machinery, marine, brick-making, ect...

Our other heavy duty power transmission gearbox for your alternative choices:

We could design and customized for our customers. Welcome to click me for more details information about our products.
