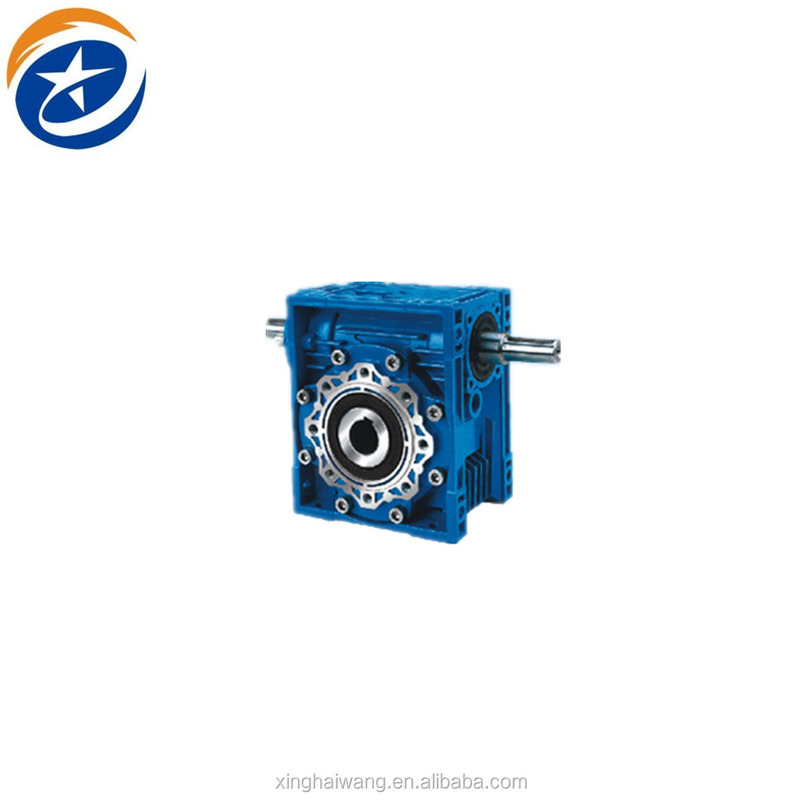

Name: NMRV right angle drive mechanical speed reducer
Brand: NMRV right angle drive mechanical speed reducer
SKU: NMRV
Price: 1 USD
Availability: InStock
Rating: 4.7 (151 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Gearing Arrangement: Worm

Output Torque: 2.6 to 1760 N.M

Rated Power: 0.06 to 15 KW

Input Speed: 1400 rpm

Output Speed: 14 rpm to 186 rpm

Model Number: NMRV

Product's name: 90 degree small reduction gear drive

Colour: Blue,Silver and depend on your need

Warranty: 1 year

Case: aluminum alloy(type030-090),cast iron(type110-150)

Worm shaft: 20Cr steel,carbonitriding

Worm wheel: nickel bronze

Mounting: B3,B8,B6,B7,V5,V6

Сертификация: ISO9001 and CE

Lubricant: Synthetic&Mineral

Bearing: C&U bearing

Основная информация

Сертификация: ISO9001 and CE

Model Number: NMRV

Оплата и доставка Условия

Packaging Details: in carton,in wooden case,in pallet

Supply Ability: 100000 Unit/Units per Month reduction gear drive

Характер продукции

right angle mechanical reduction gear drive

Product Description

RV Series gearbox is new-generation of products developed by our factory on the basis of introducing foreign advanced technology.

Its main features are as follows:

1.Made of high-quality aluminium alloy,light weight and non-rusting

2.Large output torque

3.Smooth running and low noise

4.High radiating efficiency

5.Good-looking appearance,durable service life and small volume.

6.Suitable for omnibearing installation

Specifiction:

Type:	Worm Gear Speed Reducer
Model:	NMRV025/ 030/ 040/ 050/ 063/ 075/ 090/110/130/150
Ratio:	1:7.5,10,15,20,25,30,40,50,60,80,100
Color:	Blue/Silver Or On Customer Request
Material:	Housing: Die-Cast Aluminum Alloy
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
	Shaft-chromium steel-45#
Packing:	Carton and Wooden Case
Bearing:	C&U Bearing
Seal:	NAK SKF
Warranty:	1 Year
Input Power:	0.06KW,0.09KW,0.12KW,0.18KW,0.22KW,0.25KW,0.37KW,0.55KW, 0.75KW,1.1KW,1.5KW,2.2KW,4KW,5.5KW,7.5KW ,11KW,15KW
Usages:	Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass.
IEC Flange:	56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,100B5, 100B14,112B5,112B14 132B5,160B5
Lubricant:	Synthetic&Mineral

Packaging & Shipping

Workshop

Certifications

FAQ

1 Q:What infomation should I tell you to confirm the product?

A: Model/Size, Transmission Ratio, Shaft directions & Order quantity.

2 Q: What if I don't know which one I need?
A:Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.

3 Q:How long should I wait for the feedback after I send the enquiry?
A: Within 12 hours.

4 Q:What is your product warrenty period?

A:We offer one year warrenty since the vessel departure date left China.

5 Q:What industries are your gearboxes being used?

A:Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry, escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
