Характеристики

Applicable Industries: Manufacturing Plant, Construction worksÂ , Energy & Mining, dc motor XWED Cyclo Cycloidal gearbox Gear Reducer

Gearing Arrangement: Cycloidal

Output Torque: 375~519520Nm(customized)

Input Speed: 600~1500rpm

Output Speed: 1.5~1200rpm(customized)

Pole: single stage two stage three fourstage six Stage

Ratio: 11-87

Housing Material: Cast Iron

Working temperature: -40~45â„ƒ

Application: for conveyor mining, chemical industry,steel metallurgy,lifting

Process: Carburizing, Nitriding , Grinding

Efficiency: 94%~98%

Mounting Position: Horizontal,Vertical,Flange

Color: Blue,Green,Gray,Red

Type: dc motor Cyclo Cycloidal rotation gearbox Gear Reducer for mixer

Основная информация

Оплата и доставка Условия

Packaging Details: sea worthy wooden case for XWD XLD BLD BWY dc motor Cyclo Cycloidal Pinwheel rotation gearbox Gear Reducer for mixer

Характер продукции

Product Description

BW(D) Series Cycloid Speed Reducer

TianQi——industrial gearbox manufacturers

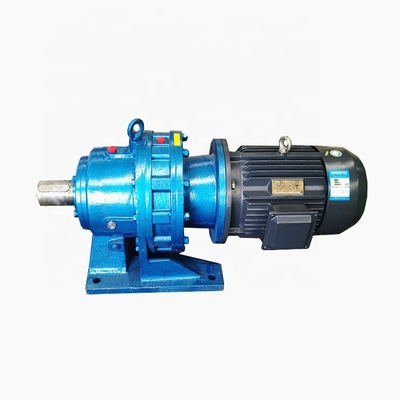

dc motor XWED Cyclo Cycloidal Pinwheel rotation gearbox Gear Reducer for mixer

Chinese electric motor speed reducer is widely used in mining machinery, chemical industry,steel metallurgy, light industry,environmental protection, paper making, printing, lifting transport, food industry and so on.

Main Series Product: R series helical gear reducer, K series spiral bevel gear reducer, NGW, P series planetary reducer, H B series gearbox, Z (ZDY, ZLY, ZSY, and ZFY) serial hard tooth surface cylindrical gear reducer, D (DBY and DCY) serial hard tooth surface cone gear reducer, cycloid reducer, etc. Meanwhile, map sample processing business can be undertaken.

Cycloidal Pinwheel Reducer is a speed reducing construction with advance design,novel structure adopting the principle of planet driving and the falling-in of cycloidal pin gear. It is widely applied to the speed reducing structure of various driving machineries ,such as lift ,transportation,mine,metallurgy,petrolchemical,texitile,prention,lightindustry,pharmacy,food,forage,food machinery,ect.

Feature:

1. Big Volecity- Reducing Ratio:Ratio of single-stage speed-reducing is 1/11-1/87; Ratio of double stage speed-reducing is 1/112-1/5133;Ratio of three-stage speed-reducing is 1/2057-1/446571;more-stages can be combined according to the requirement.
2. High driving efficiency:Due to adopting rolling engagement in falling-in part, the driving efficiency can reach above 90%.
3. Small in size, light weight: with compacted structure,small size and light weight. Due to adopting the principle of planet driving so that the input and output shaft in the same axis which will integrated with the motor.
4. Long service life: Has good resistance to abrasion because the main driving engaging parts are made of bearing steel and applying rolling friction.
5. Stable running: for most driving procedure, we adopt multi-teeth falling-in. Then the running will be stable with low noise.
6. Convenient dismounting:reasonable structure and design.
7. Strong overloading ability,anti-compact,suitable for frequently start and double-side rotation.

Specification

BWD XWD Series dc motor Cyclo Cycloidal Pinwheel rotation gearbox Gear Reducer for mixer:

(please contact us for more types & model)

Mounting Diamensions

Model selection:

Closely using the ideal reduction ratio.

Reduction ratio = servo motor speed / reducer output shaft speed

Torque calculation: Torque calculation is very important for the life of reducer, and pay attention to whether the maximum torque value (TP) of acceleration exceeds the maximum load torque of the reducer.

The applicable power is usually the applicable power of the servo models on the market, the applicability of the reducer is very high, the working coefficient can be maintained above 1.2, but the choice can also be based on their own needs to decide.XWD XLD BLD BWY Cyclo Cycloidal Pinwheel gearbox Gear Speed Reducer with electric motor for mixer.dc motor Cyclo Cycloidal Pinwheel rotation gearbox Gear Reducer for mixer.

Driven machines
Waste water treatment	Thickeners,filter presses,flocculation apparata,aerators,raking equipment,combined longitudinal and rotary rakes,pre-thickeners,screw pumps,water turbines,centrifugal pumps	Dredgers	Bucket conveyors, dumping devices, carterpillar travelling gears, bucket wheel excavators as pick up, bucket wheel excavator for primitive material, cutter head, traversing gears
Chemical industry	Plate bending machines, extruders, dough mills, rubbers calenders, cooling drums, mixers for uniform media, agitators for media with uniform density, toasters, centrifuges	Metal working mills	plate tilters, ingot pushers, winding machines, cooling bed transfer frames, roller straigheners, table continuous intermittent, roller tables reversing tube mills, shears continuous, casting drivers, reversing blooming mills
Metal working mills	Reversing slabbing mills. reversing wire mills, reversing sheet mills, reversing plate mill, roll adjustment drives	Conveyors	Bucket conveyors, hauling winches, hoists, belt conveyors, good lifts, passenger lifts, apron conveyors, escalators, rail travlling gears
Frequency converters		Reciprocating compressors
Cranes	Slewing gears, luffing gears, travelling gears, hoisting gear, derricking jib cranes	Cooling towers	Cooling tower fans, blowers axial and radial
Cane sugar production	Cane knives, cane mills	Beet sugar production	Beet cossettes macerators, extraction plants, mechanical refrigerators, juice boilers, sugar beet washing machines, sugar beet cutter
Paper machines	Pulper drives	Cableways	Material ropeways, continuous ropeway
Cement industry	Concrete mixer, breaker, rotary kilns, tube mills, separators, roll crushers

Technology

Reducer is a mechanical transmission in many fields of the national economy. The product categories covered by the industry include all kinds of gear reducer, planetary gear reducer and worm reducer, as well as various special transmission devices such as speed increasing device, speed control Devices, including various types of flexible transmission devices, such as compound transmission. Products and services in the field of metallurgy, nonferrous metals, coal, building materials, ships, water conservancy, electricity, construction machinery and petrochemical industries.

Chinese gearbox industry has a history of nearly 40 years. In all fields of national economy and national defense industry, gearbox products have a wide range of applications. Food light industry, electric machinery, construction machinery, metallurgy machinery, cement machinery, environmental protection machinery, electronic appliances, road construction machinery, water conservancy machinery, chemical machinery, mining machinery, conveyor machinery, building materials machinery, rubber machinery, petroleum machinery and other industries have strong demand of Reducer products.XWD XLD BLD BWY dc motor Cyclo Cycloidal Pinwheel rotation gearbox Gear Reducer for mixer.
