Характеристики

Warranty: 1 year

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction worksÂ , Energy & Mining, Food & Beverage Shops, Advertising Company, NMRV speed gearbox

Weight (KG): 10 KG

Customized support: OEM, ODM, NMRV speed reducer worm/helical gear motor reducer

Gearing Arrangement: Worm

Output Torque: 5-31000NM

Input Speed: 1500RPM

Output Speed: 100RPM

Pole: one two three four six Stage

Ratio: 5-5000

Housing Material: Cast Iron/Aluminum

Working temperature: -40~45â„ƒ

Application: production equipment soap

Process: Carburizing, Nitriding , Grinding

Efficiency: 94%~98%

Mounting Position: Horizontal,Vertical,Flange

Color: Blue,Green,Gray,Red

Type: NMRV speed reducer worm/helical gear motor reducer

Основная информация

Оплата и доставка Условия

Packaging Details: carton for NMRV 30 type 12V 24V 220/380V motor speed gearbox Worm Gear Reducer

Характер продукции

Product Overview

PROFESSIONAL MANUFACTURE
—— SINCE 1995

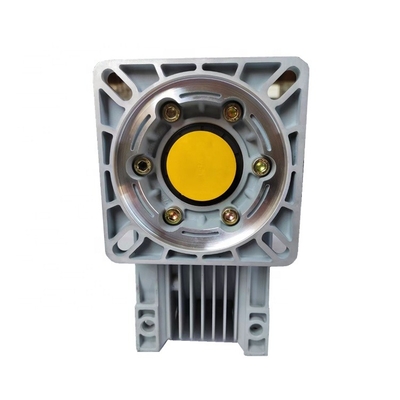

NMRV worm gearmotor reducer gear box

Chinese electric motor speed reducer is widely used in mining machinery, chemical industry,steel metallurgy, light

industry,environmental protection, paper making, printing, lifting transport, food industry and so on.
Main Series Product: R series helical gear reducer, K series spiral bevel gear reducer, NGW, P series planetary reducer, H B series helical gearbox, Z (ZDY, ZLY, ZSY, and ZFY) serial hard tooth surface cylindrical gear reducer, D (DBY and DCY) serial hard tooth surface cone gear reducer, cycloid reducer, NMRV worm gearmotor reducer gear box, etc. Meanwhile, map sample processing business can be undertaken.

FEATURES AT A GLANCE

NMRV worm gearmotor reducer gear box:

● It realized serialization and modularization with compact structure and wide range of transmission ratio.
● The transmission efficiency reach up to 96%.

● The gear processed by Carburizing, Nitriding & Grinding.

● High efficiency, superior performance with less energy consumption High precision gear, steady transmission, low noise, large load capacity, long service life.

● Support various of installation method.

HB Series Helical Gearbox

Helical Gear Motor

Helical Gear Box Reducer

PRODUCT SPECIFICATIONS

Model selection for washing machine Gear Box Transmission:

Closely using the ideal reduction ratio.
Reduction ratio = servo motor speed / reducer output shaft speed
Torque calculation: Torque calculation is very important for the life of reducer, and pay attention to whether the maximum torque value of acceleration exceeds the maximum load torque of the reducer.
The applicable power is usually the applicable power of the servo models on the market, the applicability of the reducer is very high, the working coefficient can be maintained above 1.2, but the choice can also be based on their own needs to decide. heavy industrial right angle shaft helical gearboxes for conveying machinery.

Size	25	30	40	50	63	75	90	110	130
Flange Type	56B14	63B5	71B5	80B5	90B35	100/112B35	100/112B35	132B35	132B35
			63B14	63B5	71B5	80B5	90B35	90B35	100/112B35	100/112B35
			170		63B5	71B5	80B5	80B5	90B35	90B35

NMRV worm gearmotor reducer gear box:

Gear Reducer is a mechanical transmission in many fields of the national economy. The product categories covered by the industry include all kinds of gear reducer, planetary gear reducer and worm reducer, as well as various special transmission devices such as speed increasing device, speed control Devices, including various types of flexible transmission devices, such as compound transmission. Products and services in the field of metallurgy, nonferrous metals, coal, building materials, ships, water conservancy, electricity, construction machinery and petrochemical industries.
In all fields of national economy and national defense industry, gearbox products have a wide range of applications. Food light industry, electric machinery, construction machinery, metallurgy machinery, cement machinery, environmental protection machinery,electronic appliances, road construction machinery, water conservancy machinery, chemical machinery, mining machinery, conveyor machinery, building materials machinery, rubber machinery, petroleum machinery and other industries have strong demand of Reducer products. NMRV 30 40 50 63 75 130 type 12V 24V 220/380V motor speed gearbox Worm Gear Reducer TIANQI GEARBOX Flange for NMRV speed reducer worm/helical/planetary gear motor reducer for 12/24v servo motor .

PRODUCT CONFIGURATION

20CrMnTi Hard Tooth Gear

Copper Coil High Quality Electric Motor

Famous Brand Bearings

Working principle of gear reducer :

When the output speed of the motor of the gear reducer is input from the driving shaft, the small gear of the reducer will move. The large gear is linked with the small gear, so the movement of the small gear will drive the movement of the large gear. The number of teeth is more than the number of teeth on the pinion, so the speed of the big gear will be slower than that of the pinion, and then output through the output shaft of the big gear, thus playing the role of output deceleration.

PACKING AND TRANSPORT

Sea Worth Wooden Case To ensure the transport quality;

Support Different Modes of Transportation Shipping , Air Freight, Railway Transportation, Express...

Company Profile

Established in 1995 , Zibo Boji Machinery is a professional manufacturer and exporter that is concerned with the design, development and production of Gearbox Speed Reducer. We are located in Zibo of Shandong Province, with convenient transportation access. With our own brand “TianQi”, all of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our company possesses complete machining center, lathe, gear shaping machine, gear milling machine, gear grinding machine and assembling lines. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
Besides, In 2005,we attained ISO9001 certification. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South America, Saudi Arabia, Vietnam, Pakistan, Philippines, South Africa and other countries and regions.

Successful Project

Production equipment TIANQI SOAP GEARBOX flange for NMRV speed reducer worm/helical/planetary gear motor reducer for 12/24v servo motor
