Three Phase Metallurgy City Gear Motor Reducer Box Motors F Series Reducer With Motor

1 Piece
MOQ
Three Phase Metallurgy City Gear Motor Reducer Box Motors F Series Reducer With Motor
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Gearing Arrangement: Helical
Output Torque: 3.5~21700N.m
Rated Power: 0.12-200KW
Input Speed: 1450/960rpm
Output Speed: 14-280rpm
Model Number: F37-F157
Product name: F series helical geared motor gearbox reducer
Material: cast iron
Ratio: 3.77~276.77
Mounting Position: Horizontal (foot Mounted)
Warranty: 1 Year
Heat treatment: HRC58-62
Color: customers' requirements
Packing: plywood case
Product Keywords: gear reducer
Application: Metallurgy ,Sewage treatment, Chemical Industry etc
Основная информация
Model Number: F37-F157
Оплата и доставка Условия
Packaging Details: City gear motor Three-phase reduction gear box motors R series reducer with motor plywood case or per customers' demands
Supply Ability: 500 Piece/Pieces per Month
Характер продукции
Product Description

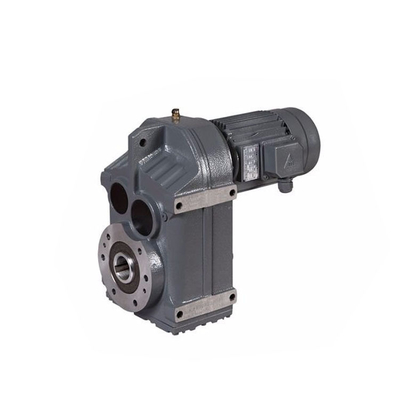

City gear motor Three-phase reduction gear box motors F series reducer with motor

F series gear reducer is one kind of parallel shaft helical gear reducer , which consist of 2 or 3 stageshelical gears (relate to gear ratio) in the same case . The hard tooth surface gear use the high quality alloy steel ,the process of carburizing and quenching, grinding ,which give it follow characters :Stable transmission ,low noise and temperature ,high loading ,long working lift . Wide application ,specialize in Metallurgy ,Sewage treatment,Chemical Industry , Pharmacy , Agriculture equipment and Oil industry...

Product Name
F Series helical gearbox reducer
Material
cast iron;40Cr
Color
customers' requirements
Noise (MAX)
65~70dB
Temp. rise (MAX)
40 C
Temp. rise (Oil)(MAX)
50 C
Power
0.12~200KW
Transmission ratio
4~280

Specifications:

1) Output speed: 0.6~1,028r/min
2) Output torque: up to 21700N.m
3) Motor power: 0.12~200kW

4) Mounted form: foot-mounted and flange-mounted mounting

Products Show

More specific data:


Our Service
Our Company

  Xuzhou Woruisen Machinery Co., Ltd. located xuzhou city, Jiangsu, as one professional manufacturer and exporter of cycloidal pin wheel reducer,worm reducer, gear reducer, gearbox , AC motor and relative spare parts, owns rich experience in this line for many years.
   We are one direct factory, with advanced production equipment, the strong development team and producing capacity to offer quality products for customers.
Our products widely served to various industries of Metallurgy, Chemicals, lifting,mining,Petroleum,textile,medicine,wooden etc. Main markets: China, Africa,Australia,Vietnam, Turkey,Japan, Korea, Philippines...

Our advantages:

1.One direct factory
2.More than ten years in reducer and motor
3.Quality products to offer
4.ISO company
5.Competitive prices
6.Professional team with rich export operation experience

Packing & Delivery

Plastic bag inside, plywood case

1. Special logistics packaging
   2. Suitable carton size
3.  PLYWOOD CASE
Our Certifications
Other products
FAQ

Q: Are you trading company or manufacturer ?

A:  One professional factory with many years experience

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample ,  Sorry, need to charge sample cost and freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
