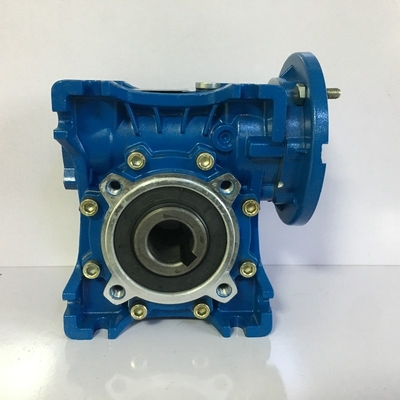

Name: Hotels China Made New Model NMRV50 Series Worm Small Aluminum Gearboxes Right Angle Speed Reducer
Brand: Hotels China Made New Model NMRV50 Series Worm Small Aluminum Gearboxes Right Angle Speed Reducer
SKU: Hotels China Made New Model NMRV50 Series Worm Small Aluminum Gearboxes Right Angle Speed Reducer
Price: 32.00 USD
Availability: InStock
Rating: 4.5 (145 reviews)

Hotels China Made New Model NMRV50 Series Worm Small Aluminum Gearboxes Right Angle Speed Reducer

1 Piece

MOQ

$32.00(1 - 9 Pieces) $28.00(10 - 99 Pieces) $25.00(100 - 999 Pieces) $23.00(>=1000 Pieces)

цена

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Applicable Industries: Hotels, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Energy & Mining

Gearing Arrangement: Worm

Output Torque: 2.6N.m-150N.m

Input Speed: 1400r/min

Output Speed: 14-186.7r/min

Lifetime: more than 15000hours

Warranty: 18 months

Input Form: IEC flange for mounting motor

Oil seal: SKF

Lubricant: Synthetic & Mineral

Bearing: NSK bearing

Mounting Position: Foot mounted, flange mounted

Diameter of shaft: 9 11 14 19 24 28 38 42mm

Color: Dark green, yellow, blue/light blue,sliver

Material: Cast aluminum alloy/Cast iron

Основная информация

Оплата и доставка Условия

Packaging Details: 1.cartons inside,wooden cases outside 2.special customer require

Характер продукции

We are one of the leading manufacturers of worm gearbox in China, specialized in gearbox industry for 22 years. Our products have been reputed by our customers for long. Manufacturing according to the ISO9001 quality control system guidelines. We help our customer develop special gearbox for their application and OEM service offered.

Product pictures:

Material of NMRV50:

Housing material:	ADC12 Al-alloy or HT200 casting iron
Worm wheel material:	ZCuSn10Pb1(12-2Cu)
Worm gear material:	20Cr
Lubricating oil:	GB Gn230-460 Synthetic oil
Efficiency:	60%~70%
Noise(MAX):	60dB
Temp.rise(MAX):	50℃
Temp.rise(oil)(MAX):	60℃
Vibration:	≤20µm
Backlash:	≤20Arcmin
Bearing:	NSK
Oil seal:	SKF or C&U

Gearbox size:

Mounting size:

Gear Box's Usage Field

1	Metallurgy	11	Agitator
2	Mine	12	Rotary weeder
3	Machine	13	Metallurgy
4	Energy	14	Compressor
5	Transmission	15	Petroleum industry
6	Water Conserbancy	16	Air Compressor
7	Tomacco	17	Crusher
8	Medical	18	Materials
9	Packing	19	Electronics
10	Chemical industry	20	Textile indutry

For example:

Work Shop:

Process Of An Order:

1. Please check product detailed information above.

A. Model/Size B. Transmission Ratio C. Shaft Direction D. Order Quantity.

2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your enquiry.

3. When you place an order, our team will confirm with you about color, package,method of payment and delivery,

then a sales contract will be sent to you to confirm.

4. Packing: Carton and Wooden Case.

5. How to delivery:

By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.

By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)

Others - We arrange to delivery goods to some place in China appoint by buyers.

Welcome To Visit Our Factory - Located in the tourism city - Hangzhou -West Lake.
